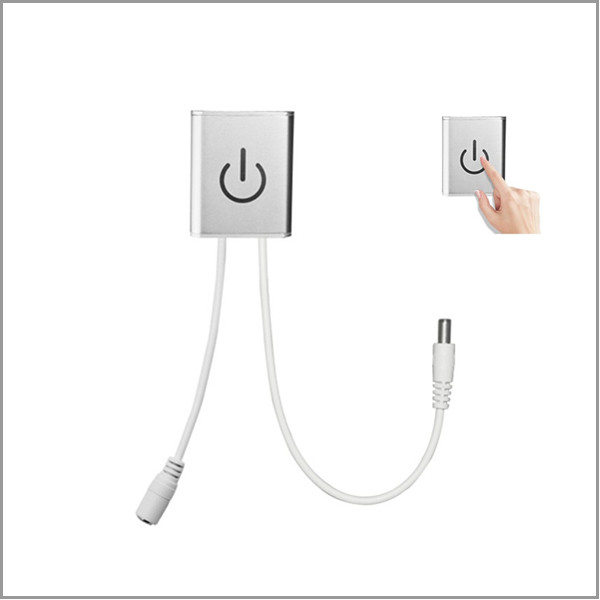

Model No.: ES-TDS01

Description:

1. work with all DC12V/24V input LED lights

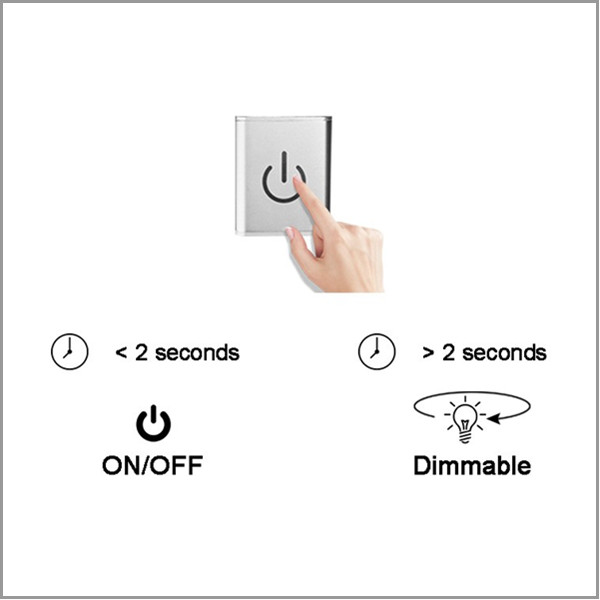

2. touch the alluminum body to switch on/off and dim light

3. touch time < 2 seconds, on/off function

4. touch time >2 seconds, dimming function hold finger to the alluminum body until the brightness increases or decreases to desired level



Specifications:

Model No.  ES-TDS01
Light Controlfor single color light
Input VoltageDC12V/DC24V
Input Current 3A
Output Power36W(DC12V); 72W(DC24V)
Case MaterialAlluminum
Case Colordefault silver, black case optional

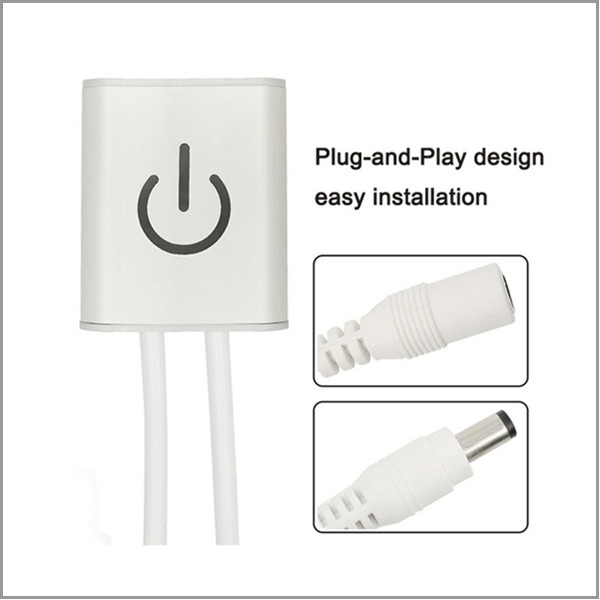

Input CableDC Φ5.5 100mm(default), can be customized
Output CableDC Φ2.1 200mm(default), can be customized

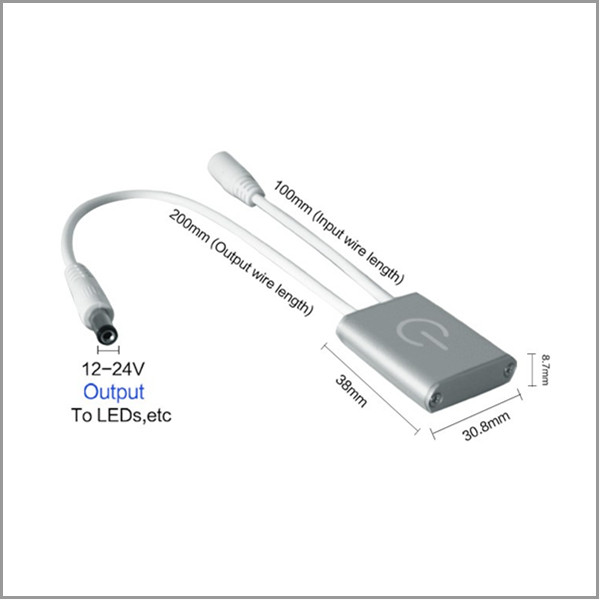

Dimension30.8L x 8.7W x 38H (mm)
Weight0.02kg
