Model No.: ES-WFS07 Kit

Description:

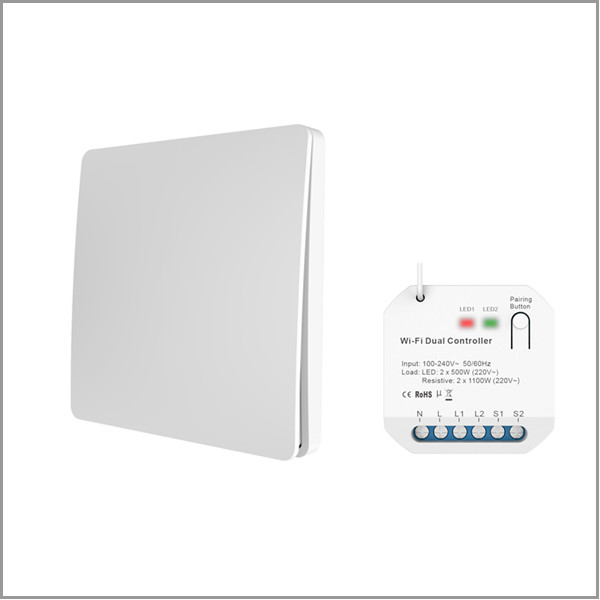

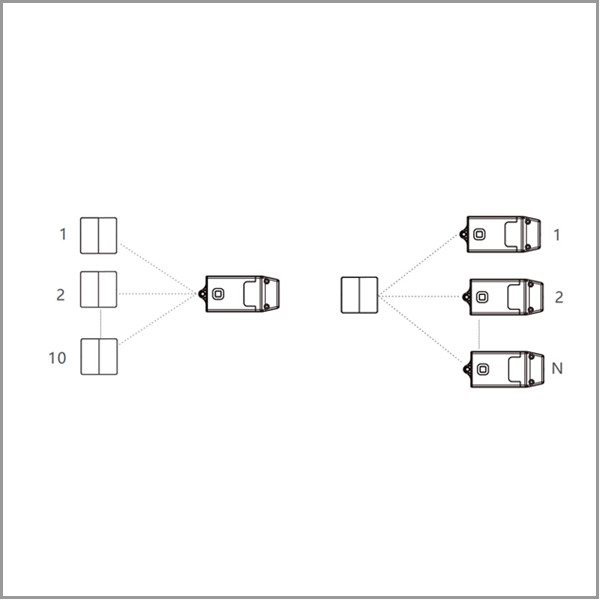

The smart switch kit includes 1 piece of self-powered wall switch and 1 piece of receiver. After pairing, you can use the wall switch to control the receiver.

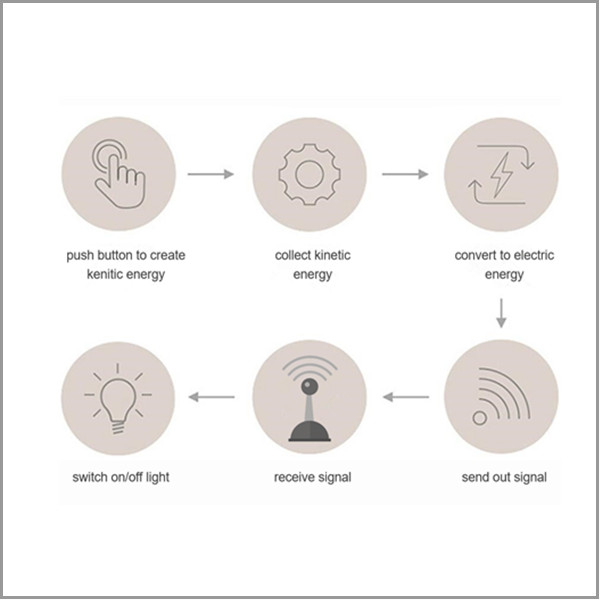

The kinetic wall switch uses micro-energy acquisition technology. It can convert your kinetic energy to electric energy when you push the button. No need to use battery and no need to connect with power. Built-in RF433 module, remote control the receiver.

Kinetic Wall Switch Specifications:

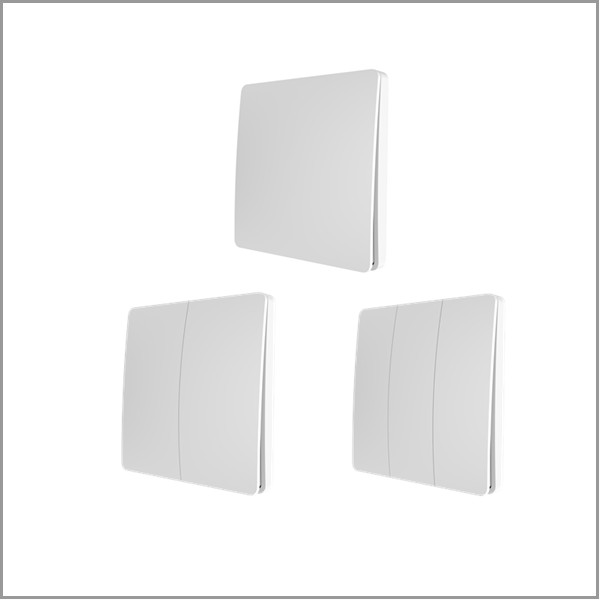

Model No.ES-KS01ES-KS02ES-KS03
Number of Keys123
Switch Typepush button
Power Modeself-powered (no battery)
Working FrequencyRF433MHz
Control Distance80m (outdoor); 25m (indoor)
Life Time>100,000 times
Waterproof LevelIP67
Operating Temperature-10℃  – 50℃
Colorwhite, gold, silver

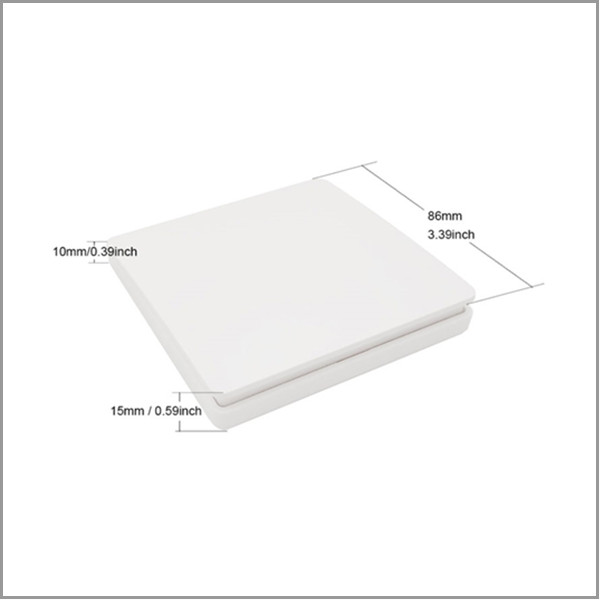

Dimension86(L) x 86(W) x 15(H)mm
Weight0.13kg



Receiver Specifications:

Model No.ES-WFS07
Input VoltageAC200V-240V
Output VoltageAC200V-240V
Max Current2 channels, 5A
Rated Power500W/ch(220V); 250W/ch(110V)
Control Modeon / off
Working FrequencyRF433MHz & Wifi 2.4GHz
Support SystemAndroid / IOS
Color white
Operating temperature-10℃  – 50℃
Weight0.1kg
Dimension44(L) x 44(W) x 22(H)mm
